    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

    Ask Lasest Price
    Brand Name : Linsing
    MOQ : 1 SET
    Supply Ability : 5 Set/Sets per Day
    Price : $8,000.00/sets >=1 sets
    • Product Details
    • Company Profile

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

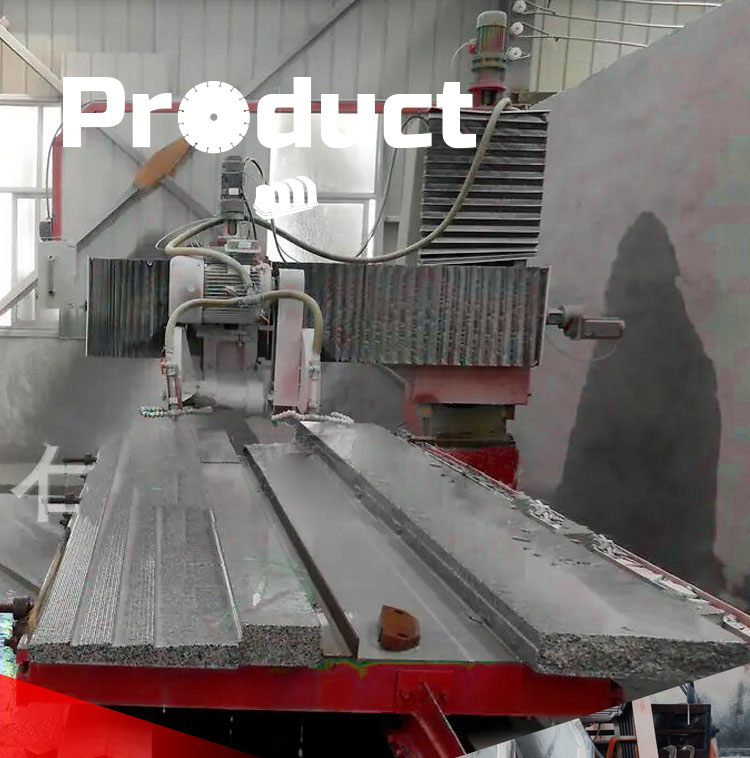

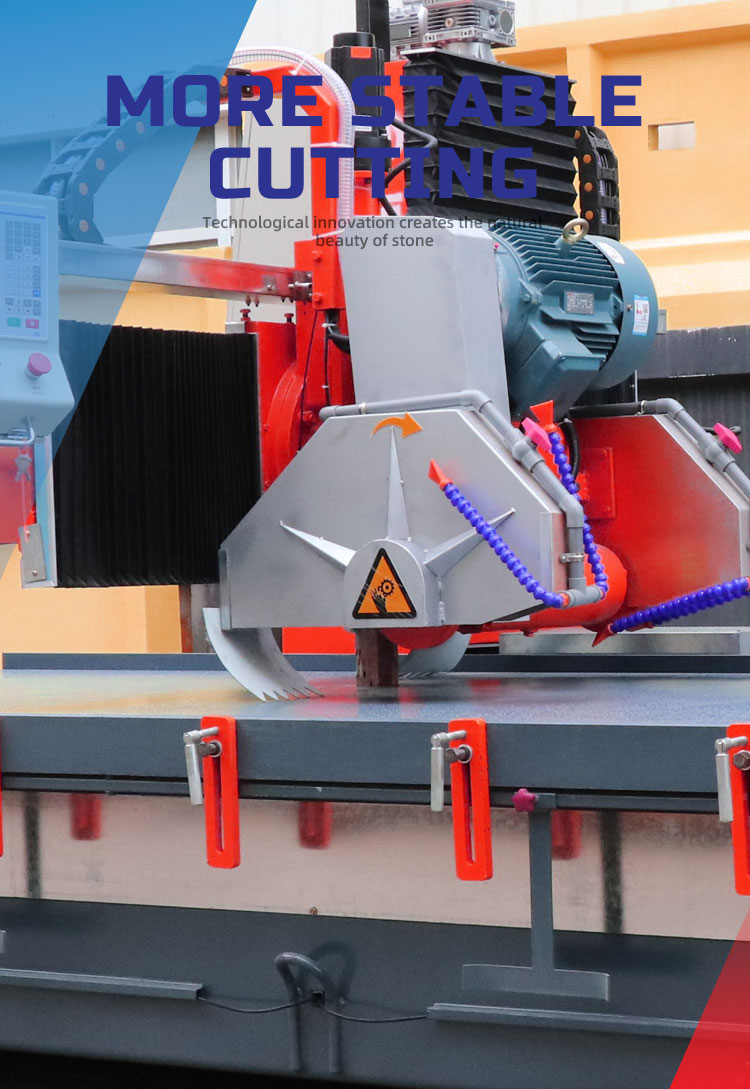

    Multifunctional Stone Profiling Machine
    The multifunctional stone profiling machine works with double blades and an automatic tracking shape of the model. it is very easy to operate. It is automatically controlled by a microcomputer, specially designed to carry out architectural shapings such as profiles, roman columns, and other diverse shapes on granite and marble.

    Product Features:
    1. PLC programmable control type, easy to operate.
    2. The working platform adopts an oil-immersed seal guide rail.
    3. Rack set under the platform, symmetrical force, good rigidity, and long service life.
    4. Through optical fiber probe tracking, automatically cut according to the template mold profile.
    5. A couple of blades mounted so as to process two kinds of stuff at the same time for higher efficiency.

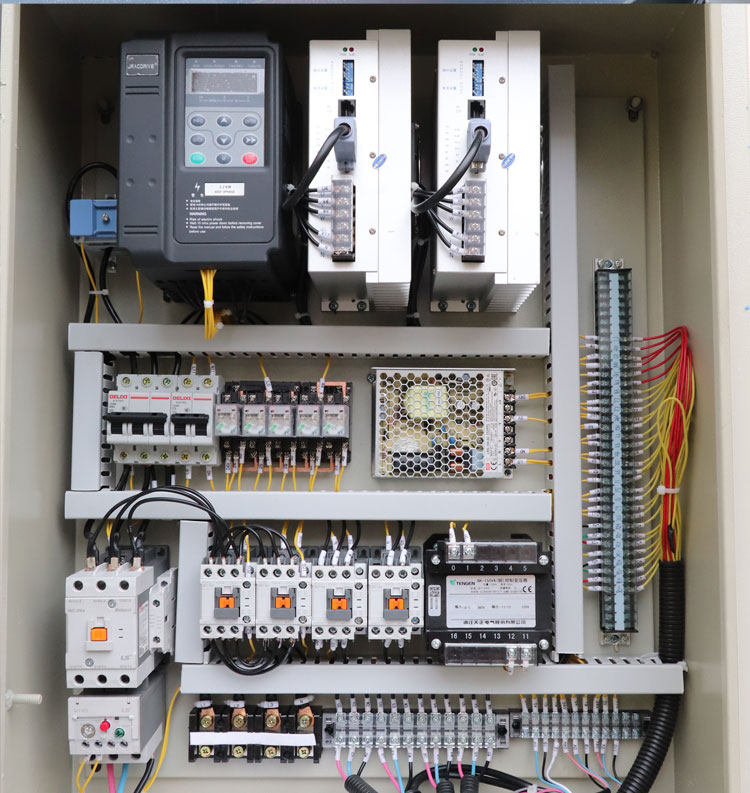

    6. Equipped with precision mechanical parts and Japanese name-brand electric parts, this machine provides high efficiency, stability, and reliability.

    ModelUnitLXFX-600
    Blade diametermmφ350-600
    Main motor powerkw15
    Cutting speedmm0-7500
    Max. cutting(L*W*H)mm3000 x 1200 x 350
    Max cutting thicknessmm180
    Overall dimensions(L*W*H)mm5000 x 2200 x 2400
    Water Comsuptionm³/h4
    Approximate weightKg4800
    Product Description

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

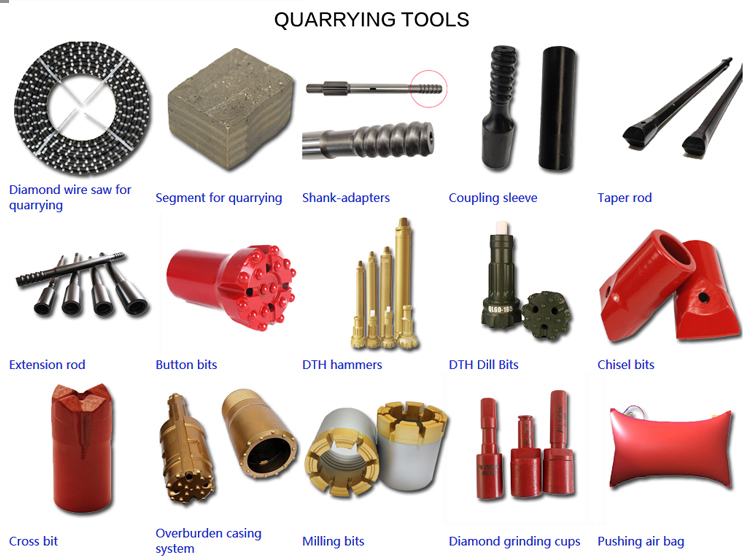

    Linxing products

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

    Packaging & Shipping

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MMStone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM

    Stone Profiling Machine for Cutting Granite Marble Limestone 5000 x 2200 x 2400MM
